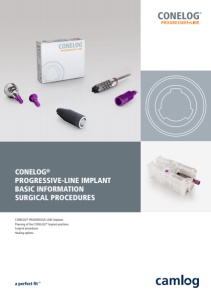

CONELOG PROGRESSIVE-LINE Surgical procedures
4 CONELOG ® PROGRESSIVE-LINE IMPLANT MATERIAL All CONELOG ® PROGRESSIVE-LINE Implants are made of titanium grade 4. The CAMLOG ® Abutments and abutment screws are made of titanium alloy Ti6Al4V ELI. PRODUCTION PRECISION For the most part, the inner and outer geometry of the CONELOG ® Implants and abutments are rotary machined. The tolerances can therefore be kept very low. The result is excellent part precision without impacting the material structure. The CONELOG ® PROGRESSIVE-LINE Implant-abutment connection thus ensures a very precise, stable and rotation-locked connection to the CONELOG ® Prosthetic components. INNER CONFIGURATION OF THE IMPLANT CONELOG ® PROGRESSIVE-LINE Implants are equipped with a cone (7.5°) and three grooves in the inner configuration for positioning CONELOG ® Abutments. The CONELOG ® Abutments are fitted apically with a cone and three cams. These lock into the conical connection and the three grooves of the implant. The CONELOG ® Abutment does not cover the implant shoulder (integrated PlatformSwitching). ACONELOG ® Abutment screw is used to fix CONELOG ® Abutments in the CONELOG ® PROGRESSIVE-LINE Implant with a defined torque. For optimal positioning of the abutments in the implant, they should be aligned in the bone so that one of the three grooves points vestibularly. The insertion tools and insertion posts include outer markings that correspond to the three grooves of the CONELOG ® Implant's inner configuration. Groove/cam design of the CONELOG ® Implant-abutment connection 7.5° Conical connection CONELOG ® PROGRESSIVE-LINE IMPLANT Implant inner thread Implant CONELOG ® Abutment screw CONELOG ® Abutment CONELOG ® Groove-cam design Abutment guide in the implant
