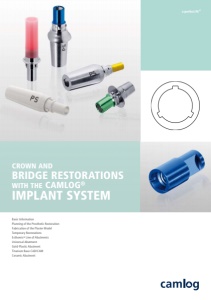

CAMLOG Crown- and Bridge Restorations

Crown and Bridge Restorations with the CAMLOG ® Implant System CAMLOG ® TUBE-IN-TUBE™ IMPLANT ABUTMENT CONNECTION All CAMLOG ® implants are equipped with the proven Tube-in-Tube™ Implant Abutment Connection and feature three symmetrically arranged grooves (width 0.5 or 0.7 mm, depth 1.2 mm). CAMLOG ® abutments include three cams underneath the implant shoulder support that correspond to the three grooves in the implant/lab analog. When inserting the abutments, their tubular extension toward the apex affects the simple, easy and safe orientation in the longitudinal axis of the implant/lab analog before the three cams rest on the shoulder of the implant. The abutment is rotated until tactile engagement of the cams in the grooves of the implant/lab analog. The abutment is then in the final position. NEW: SCREW-LINE implants have square grooves (new inner configura- tion of the K-Series) in the cylindrical implant neck area. New SCREW-LINE implants with K article numbers (K-Series) can only fit- ted with abutments with K article numbers (K-Series). Abutment Abutment screw Implant Lower inner thread Groove/cam design Abutment guide in the implant Upper inner thread SYSTEM INTRODUCTION
