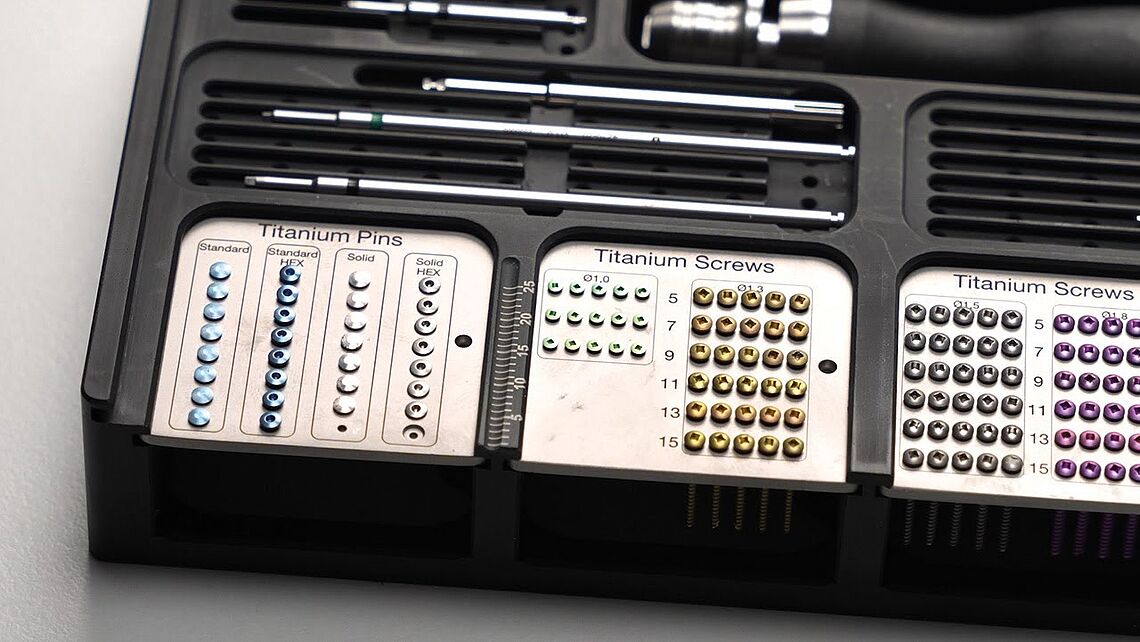

A new modular design for high flexibility
The toolbox accommodates up to four inlays and is securely closed by the lid. The new modular design allows personalized configuration and enables the simultaneous storage of microscrews, pins, drills, and tools. The ergonomic structure improves usability and ensures clarity during surgical procedures.

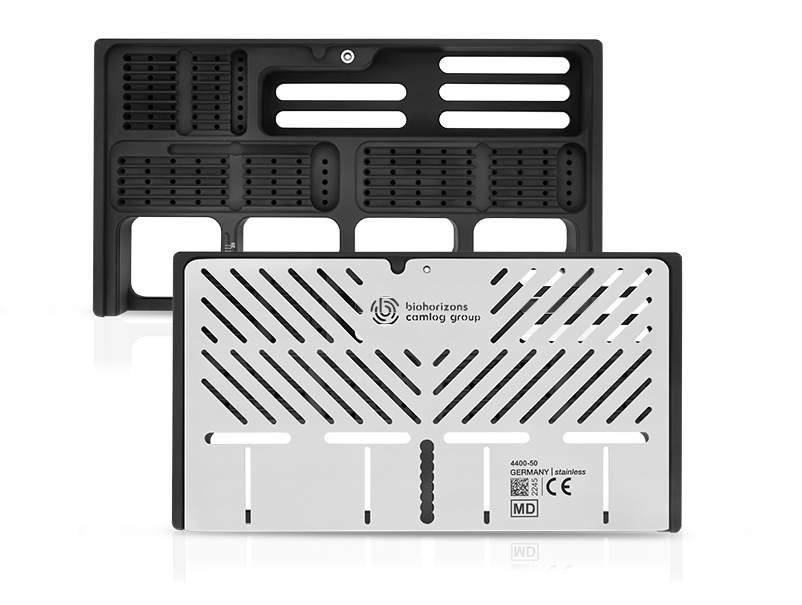

Toolbox with cover
- Ergonomic arrangement
- Interchangeable inlays for personalized configuration
- Autoclavable to conveniently store and organize the following components:

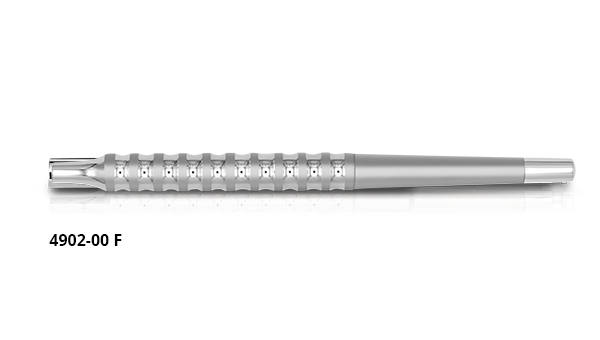

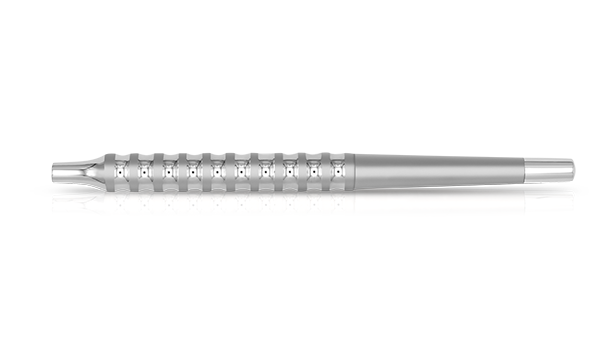

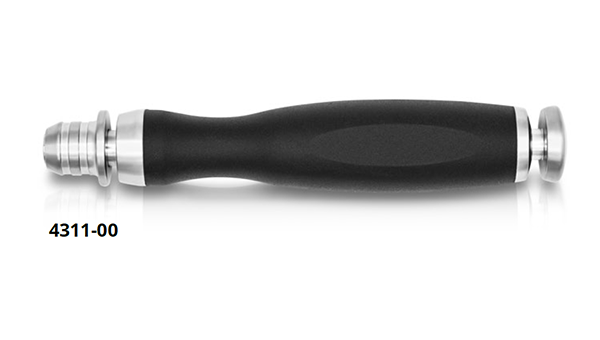

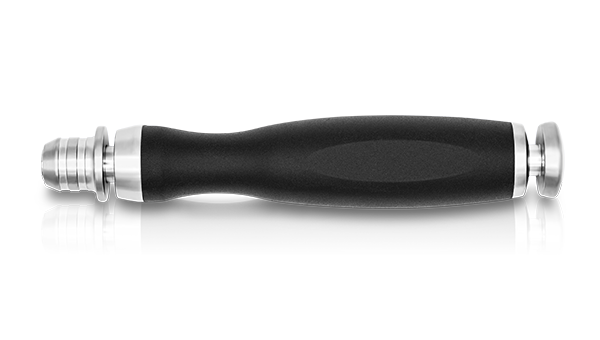

- Handle
- Fixation screws, pins, or Tenting-Screws

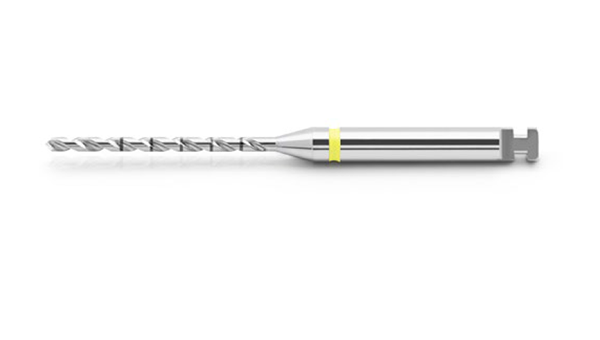

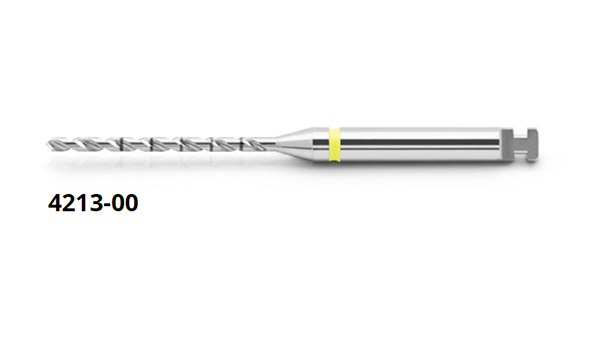

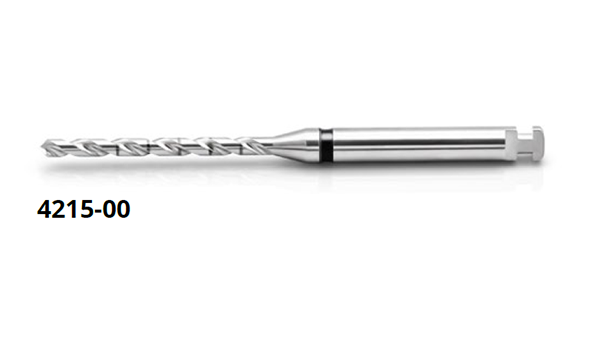

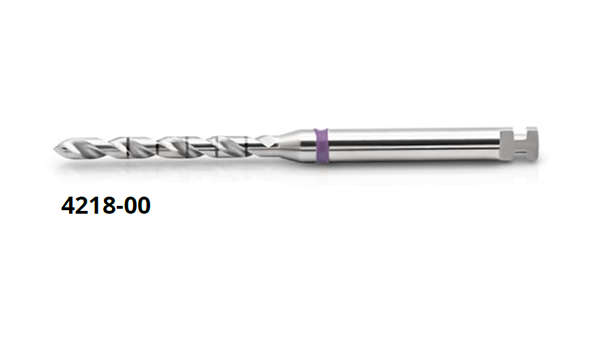

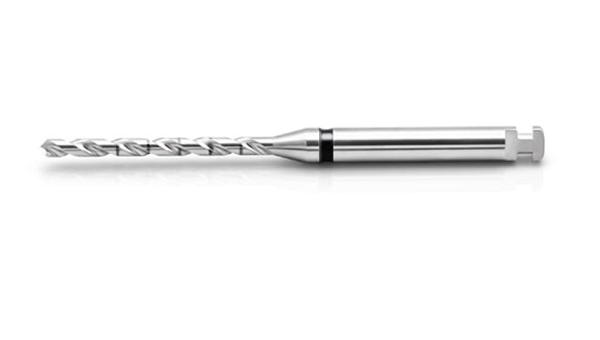

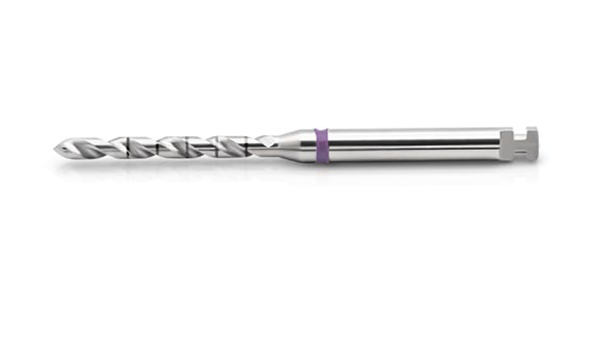

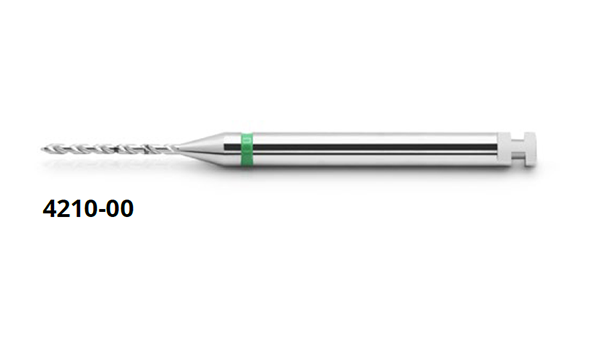

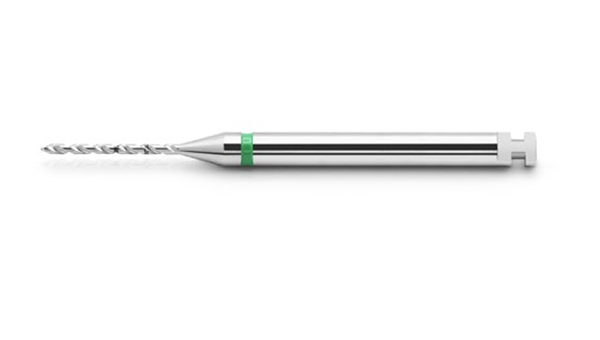

- Drills (short/long)

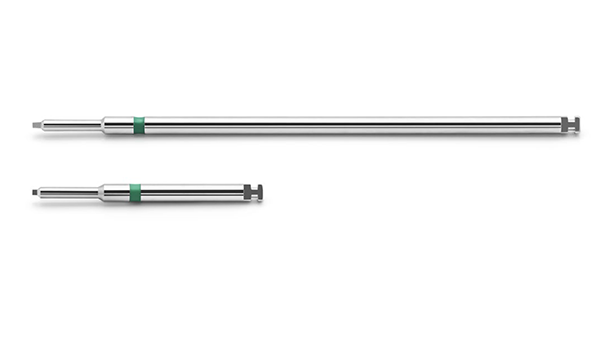

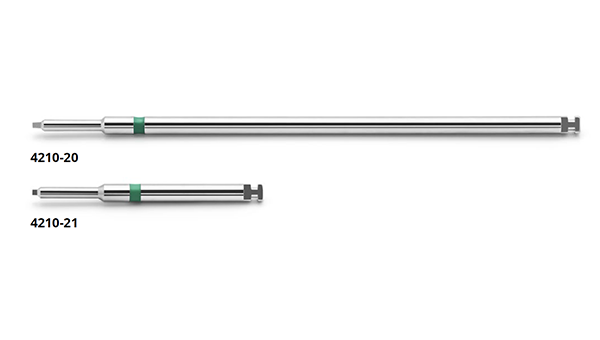

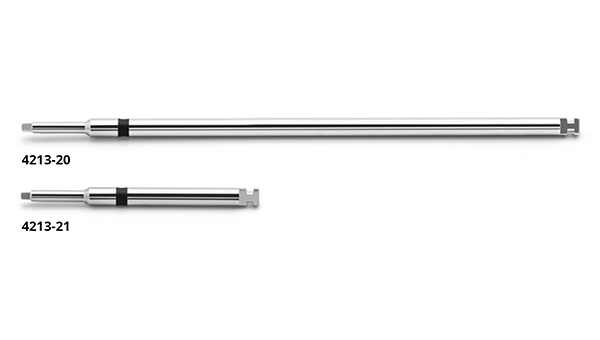

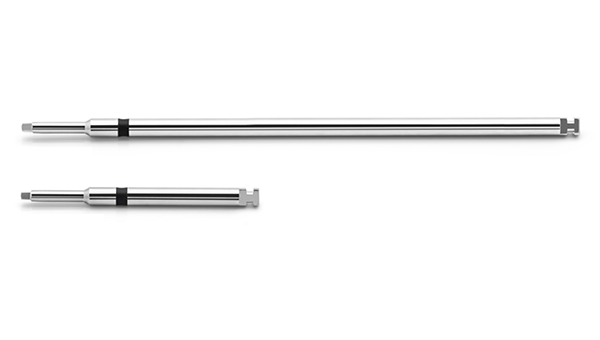

- Screwdriver blades

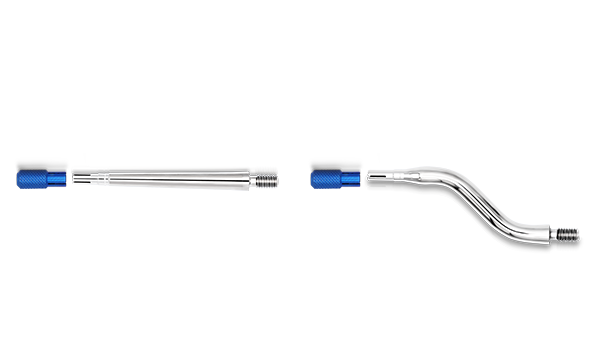

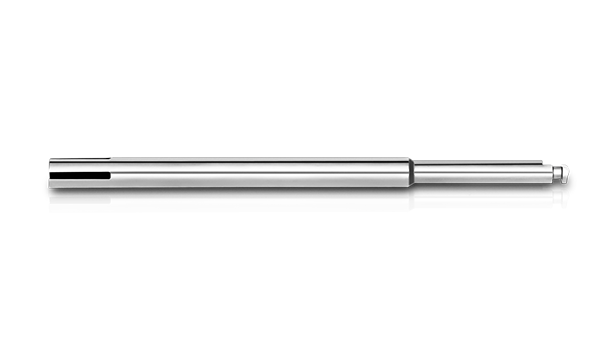

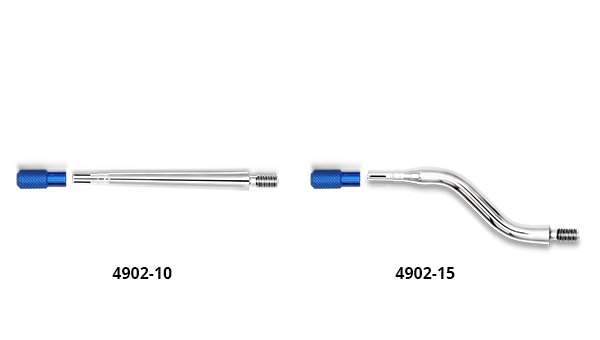

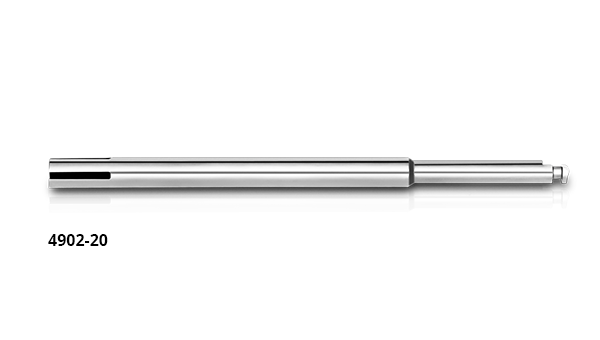

- Pin applicator (4902-20)

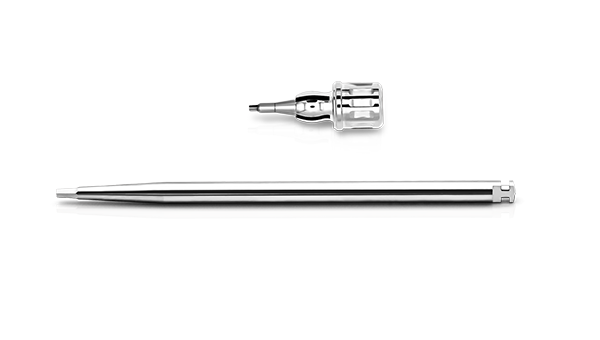

- Pin Driver (4902-55)

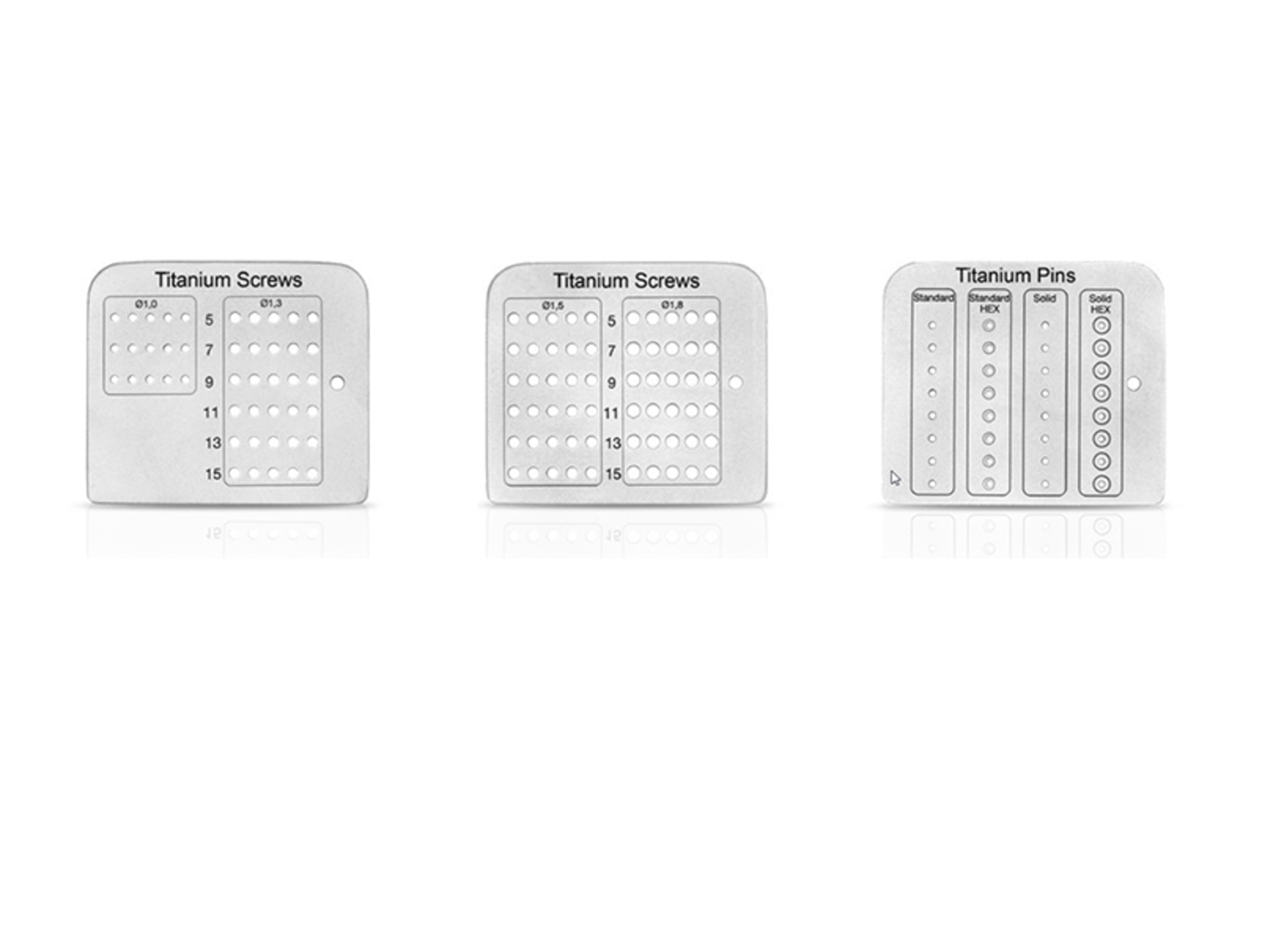

Toolbox inlays
- Inlay for Titanium microscrews Ø 1.0 / 1.3 mm (4010/13-xx)

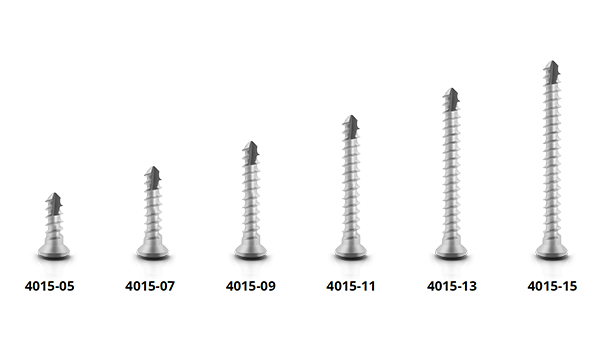

- Inlay for Titanium microscrews Ø 1.5 / 1.8 mm (4015/18-xx)
- Inlay for INOX microscrews (stainless steel) (4510/12-xx)
- Inlay for Tenting-Screws (stainless steel) (4712-xx-xx)
- Inlay for Titanium pins (4901-xx) and Titanium Solid-Pins (4911-xx)

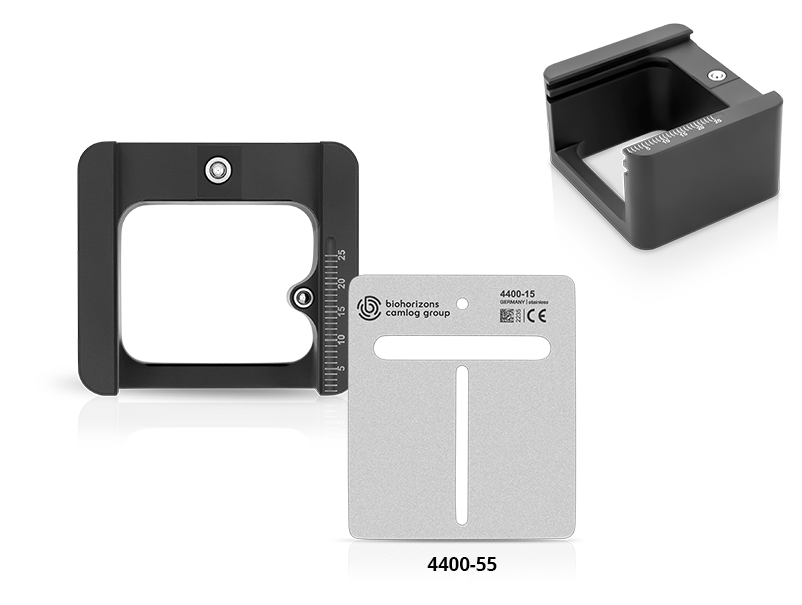

- Inlays fit both the Toolbox (4400-50) and the Cube (4400-55)

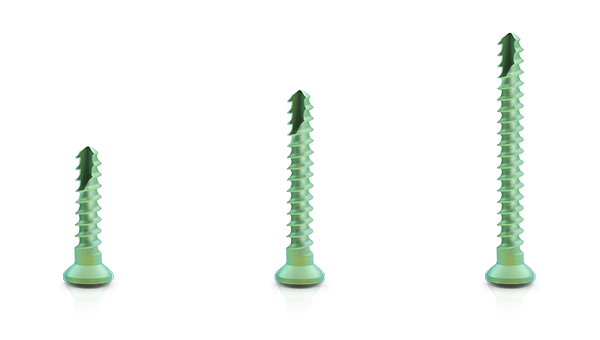

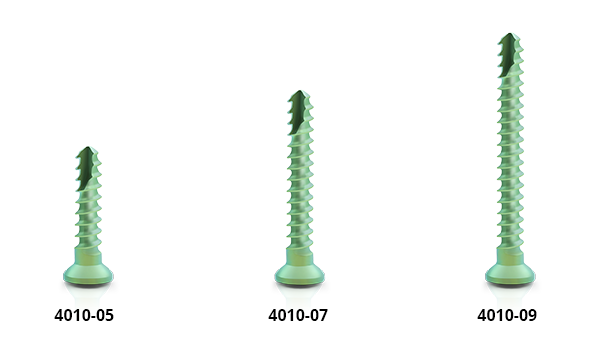

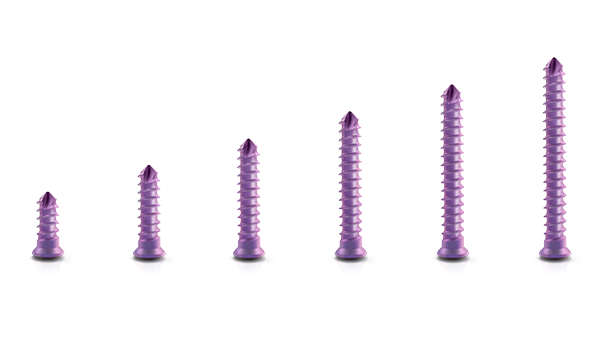

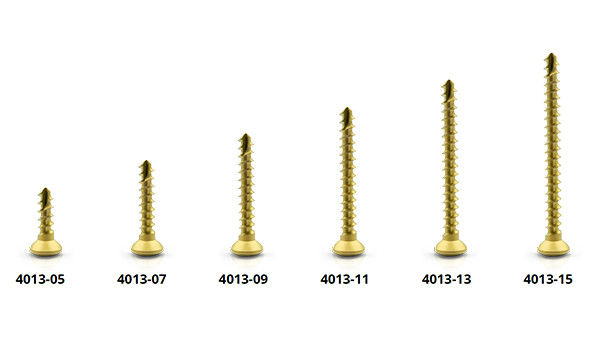

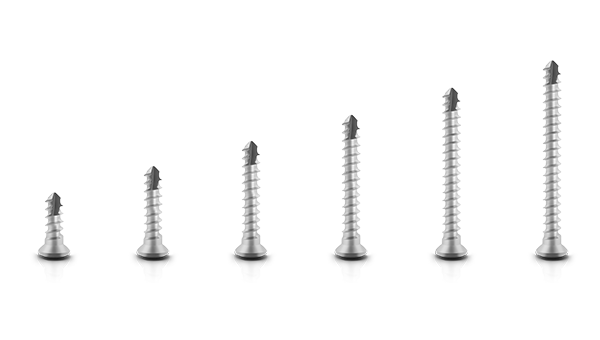

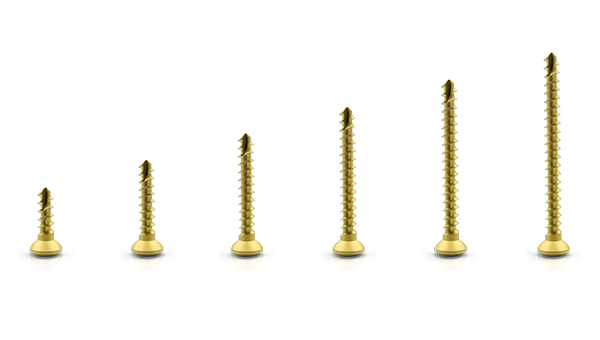

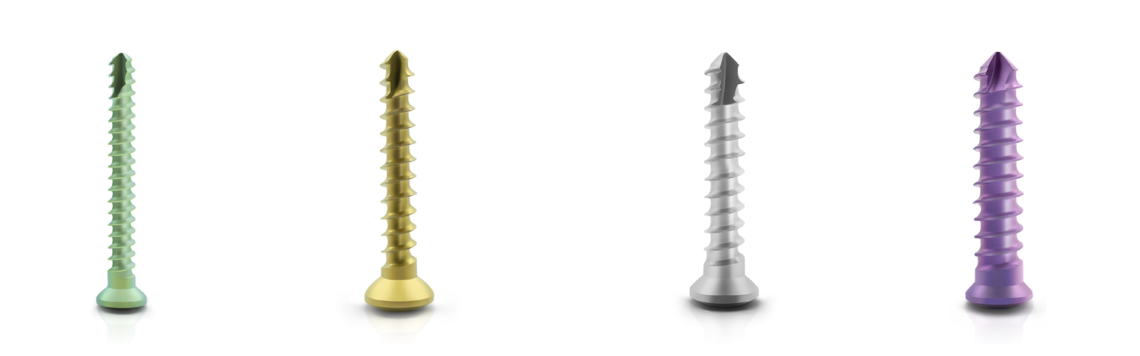

Titanium microscrews and instruments
The microscrews were specially developed for the fixation of bone plates and blocks. They are made of medical-grade, biocompatible titanium. The proven QUADRO design ensures reliable force transmission during tightening. The color-coding eases visual identification and quick matching to the appropriate tools.
INOX microscrews (stainless steel) and instruments
Self-tapping bone screws
INOX microscrews are used for the fixation of bone plates and blocks. The screw head design “QUADRO” improves the clamping force and ensures precise and safe transport and application in the surgical site.
INOX Tenting-Screws (stainless steel) and instruments
Self-tapping bone screws
The Tenting-Screws provide structural support during augmentation procedures following the tent-pole technique. They prevent the collapse of soft tissues into the grafting area and maintain the space for horizontal and vertical bone growth.

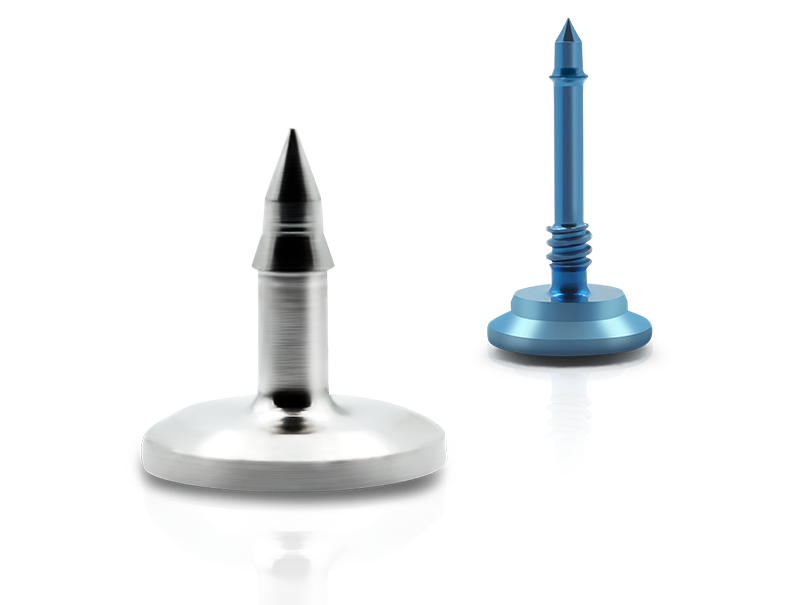

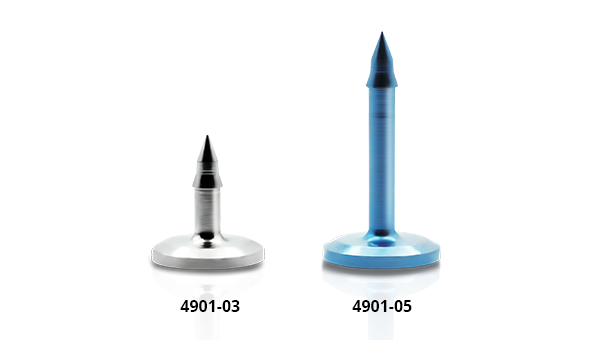

Titanium pins and Titanium solid-pins
Fixation pins for meshes and membranes

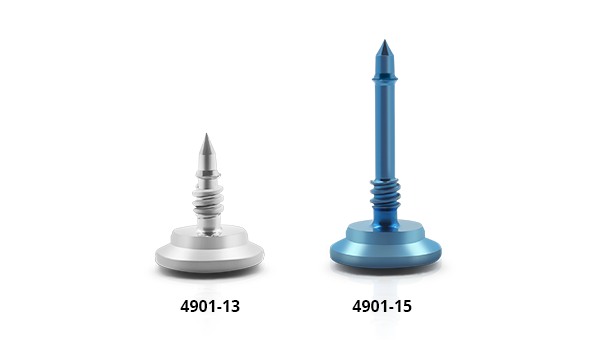

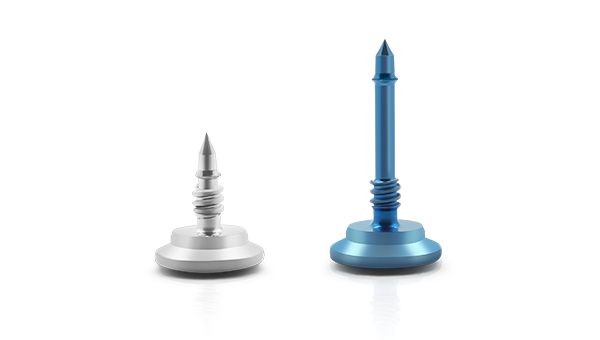

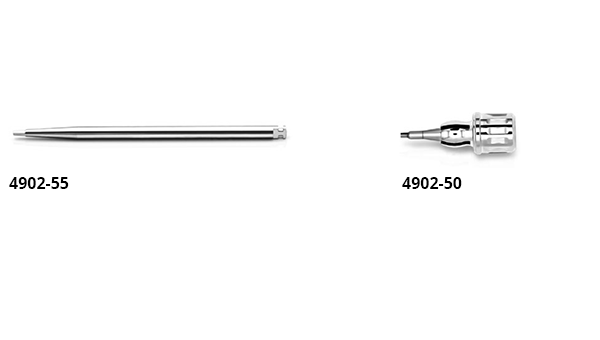

The titanium pins are available with or without threads and can be used to fix meshes and membranes. Pins with a HEX HEAD (4901-13 and 4901-15) can be easily retrieved after healing by using the pin removers (4902-50, 4902-55). The pin heads have a diameter of 2.5 mm.
The titanium solid pins with flat heads design (4911-03) are suited for use under thin soft tissues. Those with thicker head design (4911-13) can be easily retrieved after healing by using the pin removers (4902-50, 4902- 55). The pin heads have a diameter of 2.5 mm.
